Description
PRODUCT DESCRIPTION

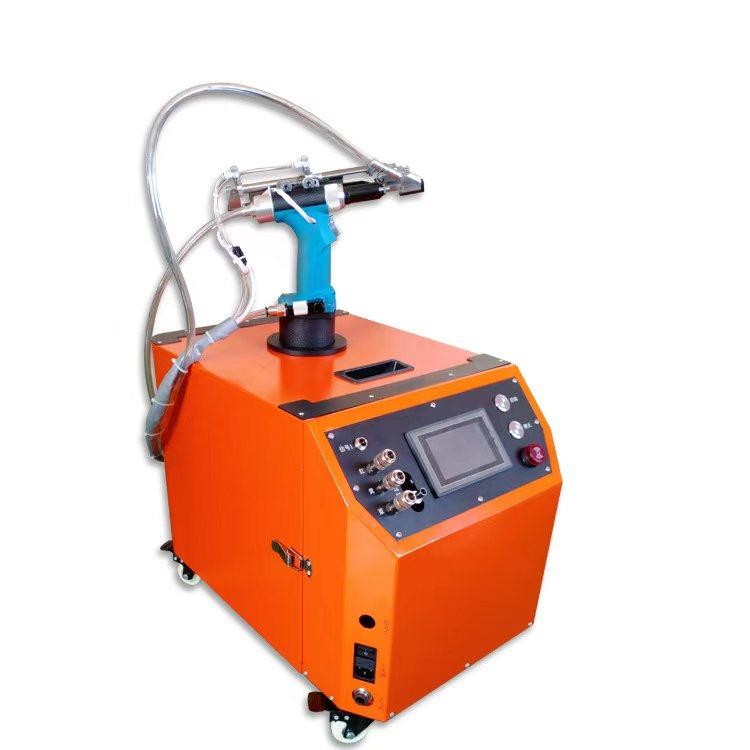

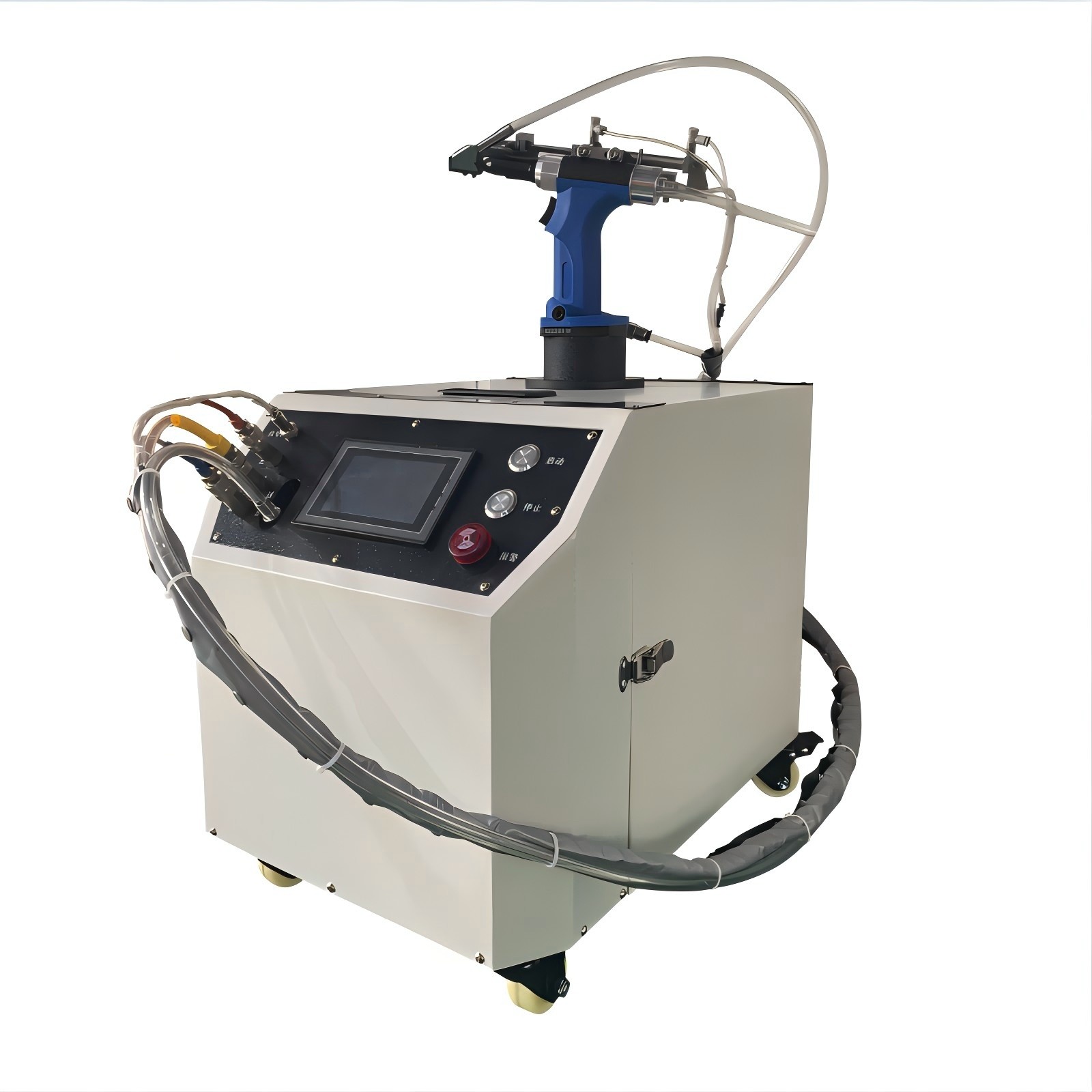

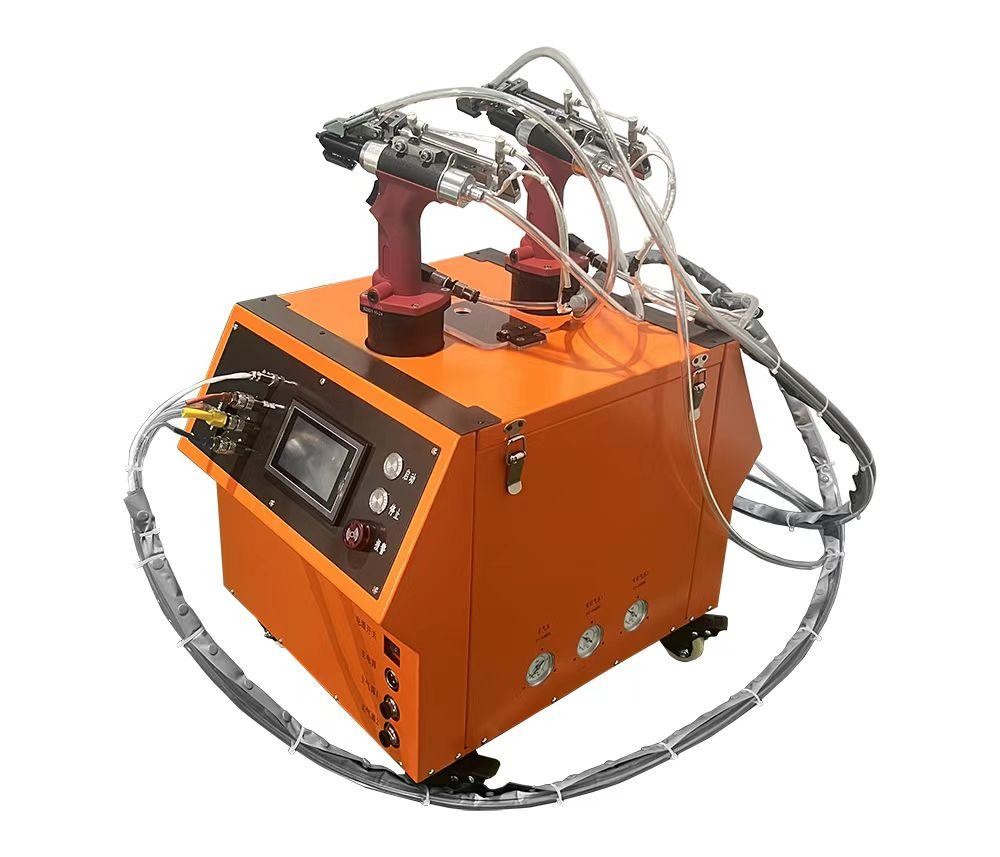

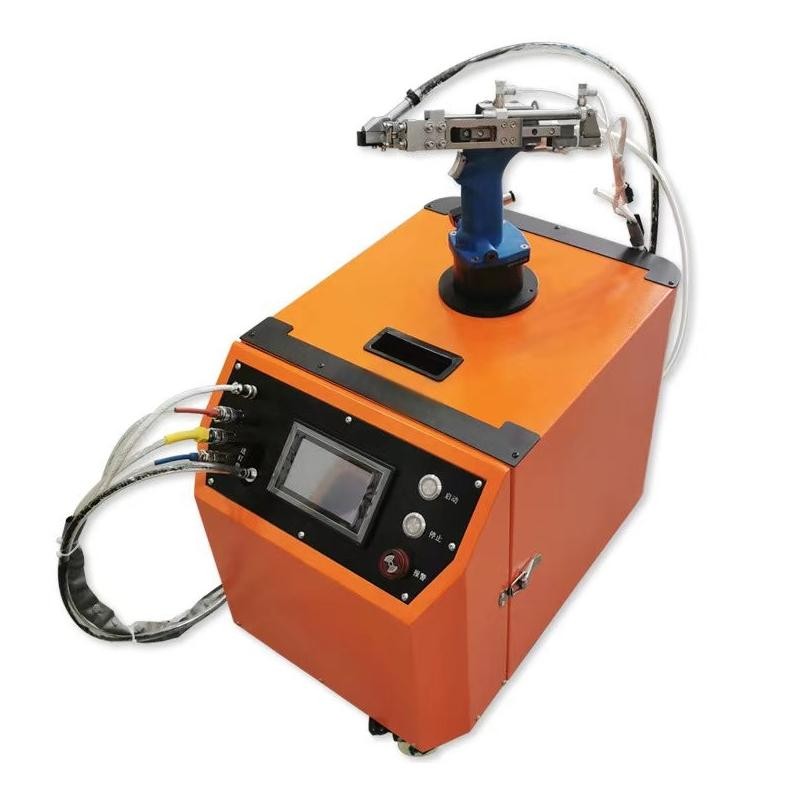

This Handheld Automatic Riveters is capable of automatically feeding and installing rivets at a rapid pace, significantly reducing production time and labor costs. It ensures consistent quality in every riveting operation, providing strong and reliable joints.
SPECIFICATION
|
Model |
LD400 |
|
Nail gun |
Standard |
|
Dimensions |
L540*W370*H440MM |
|
Weight |
About 55KG |
|
Voltage |
AC110V/220V, 50/60HZ |
|
Power |
300W |
|
Air pressure |
0.5 to 0.8MPa |
|
Nail capacity |
~1200PCS |
|
Nail Materials |
Aluminium/iron/steel/plastic |
|
Nail Speed |
~0.8S |
|
Feeding hose length |
2.5M preferred |
|
Working mode |
Semi-automatic |
|
Efficiency |
40 to 60 nails per minute |
Applicable various rivets
Feature
New structure design, can achieve similar specifications to common nails, and daily maintenance is very convenient;Very low nail stuck rate, minimal troubleshooting time;
PLC touch screen HMI function: according to different nails, and different sizes of the workpieceto adjust the optimal riveting takt;
Built-in riveting count and leak-proof count for easier production management;
It can be connected with the manipulator to replace the manual operation;
It can be customized according to customer's non- standard special nails;
Application Cases
