Product Description

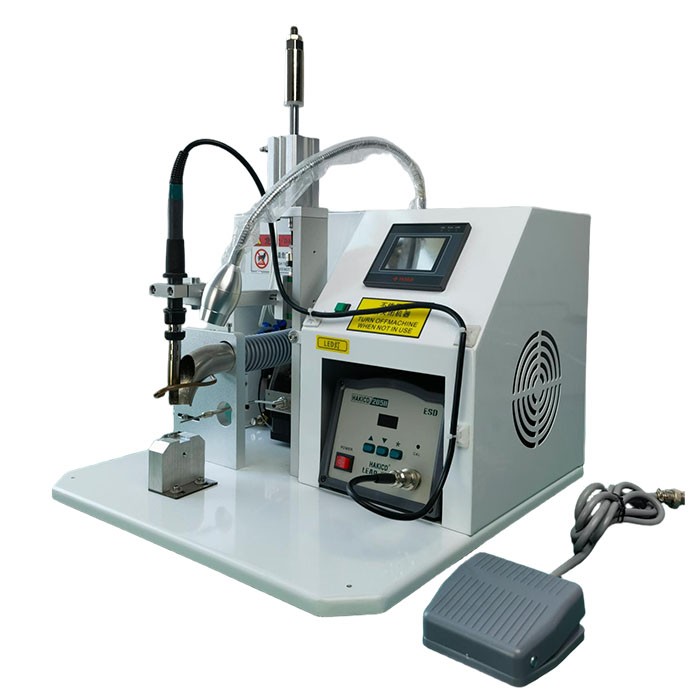

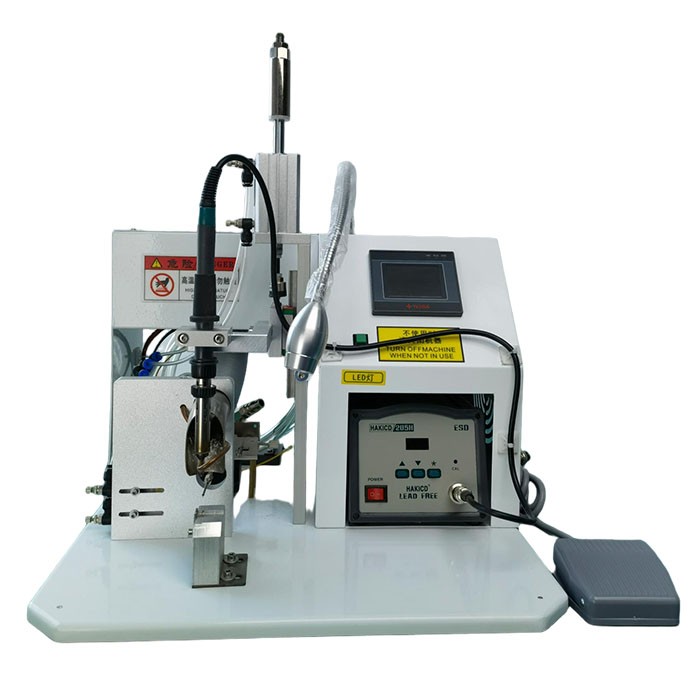

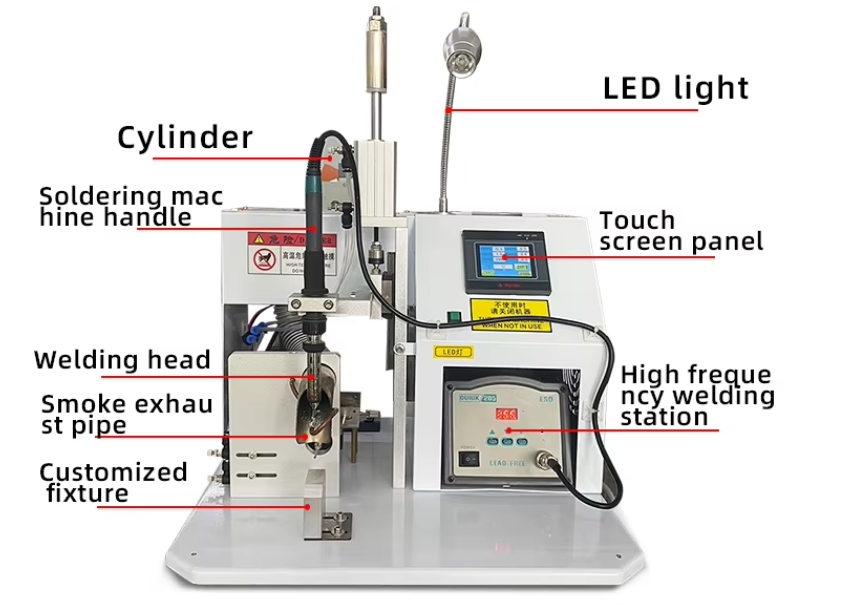

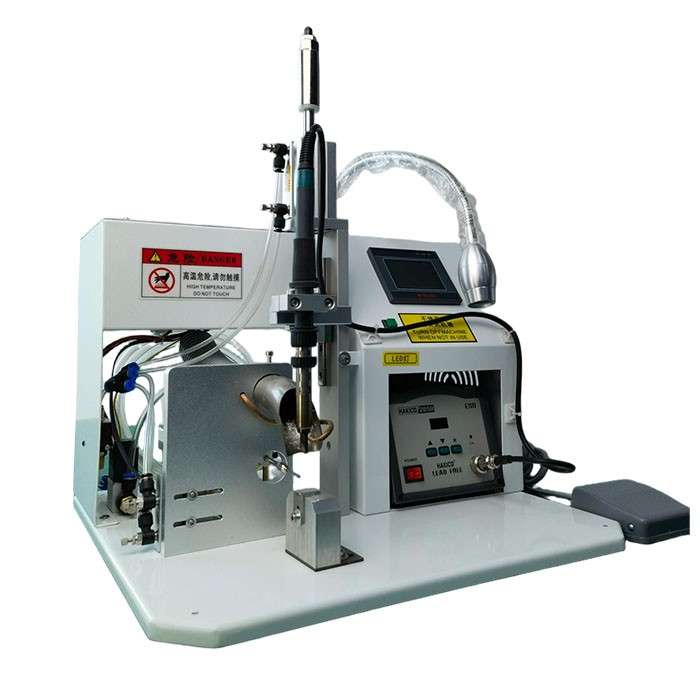

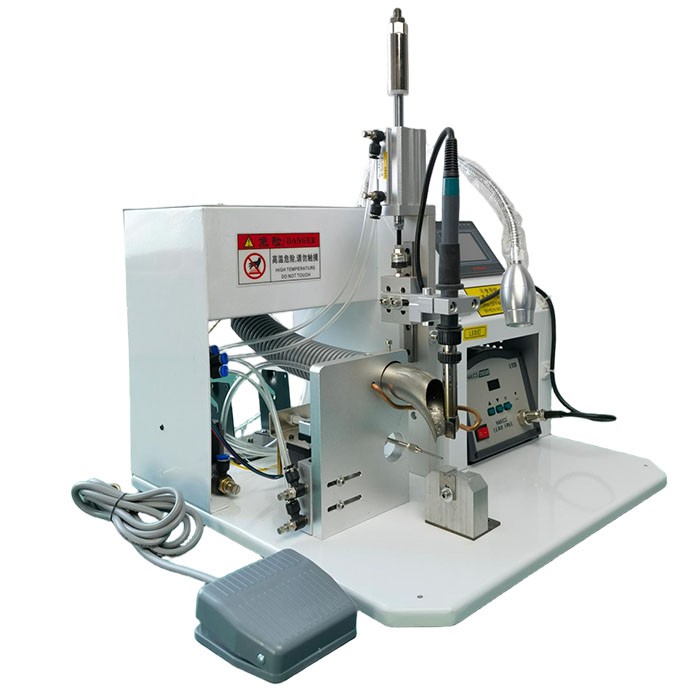

The semi - automatic soldering machine is a kind of welding equipment that combines manual operation and automatic functions. It melts the solder wire through electrical heating, and the welding action is completed with manual assistance. It mainly consists of a welding system (including a soldering iron tip, a heating device, and a solder feeding device) and a mechanical structure (such as a workbench, an operating handle, etc.). It is applicable to small - scale production workshops or scenarios with diverse products and flexible welding requirements, and has certain advantages.
Specifications
Name
Semi - automatic soldering machine
Model
S-150
Machine Power
160W
Soldering power
150W
Rated voltage
210V- 240V 50/60HZ / 110V
Air supply
0.4-0.6Mpa
Temperature range
50-550℃
Control system
PLC and touch screen
Machine size
400*400*450CM
Wight
20KG
Main application scenarios

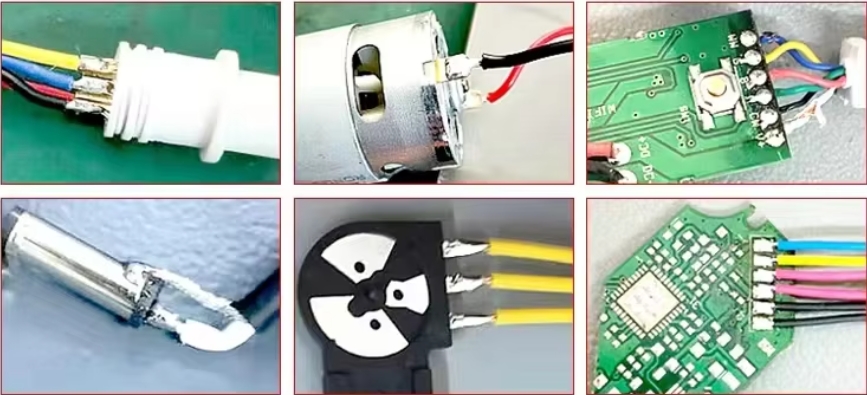

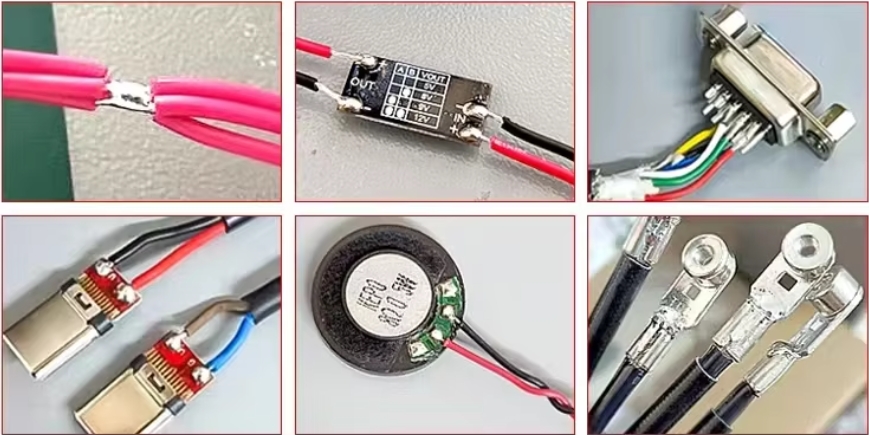

This small semi - automatic soldering machine is widely used in the wire harness welding field, such as data cables USB, micro USB, mini USB, charging heads of iPhones, Type - C, HDMI plug docking, motor wires, etc., wire harness soldering.
For PCB boards, LED lights/light strips/light panels, electronic components, switches, adjustable resistors, e-cigarettes, rectifier bridges, waterproof connectors and other connector soldering.
It has a wide range of applications in the soldering field and strong adaptability. The debugging and installation are simple and easy to learn. It adopts a PLC touch - screen integrated machine with timely and reliable response and anti - interference.
The cleaning soldering iron tip mode can also support free switching according to different requirements, being flexible. The function is more powerful. When the parameters are disordered due to improper operation, the factory data can be restored with the default parameters, that is, the settings before leaving the factory can be recovered.
Packing and Shipment

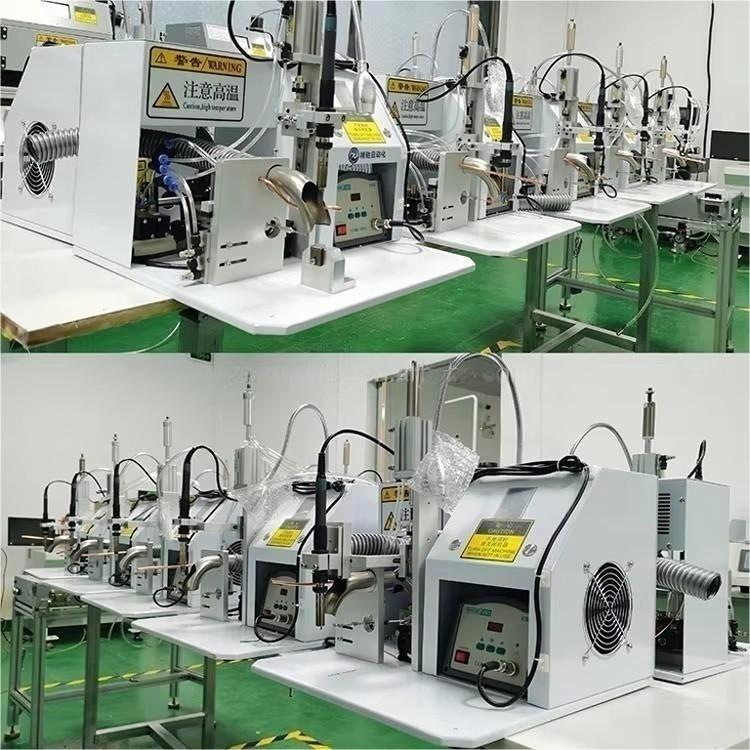

Our Factory
