PRODUCT DESCRIPTION

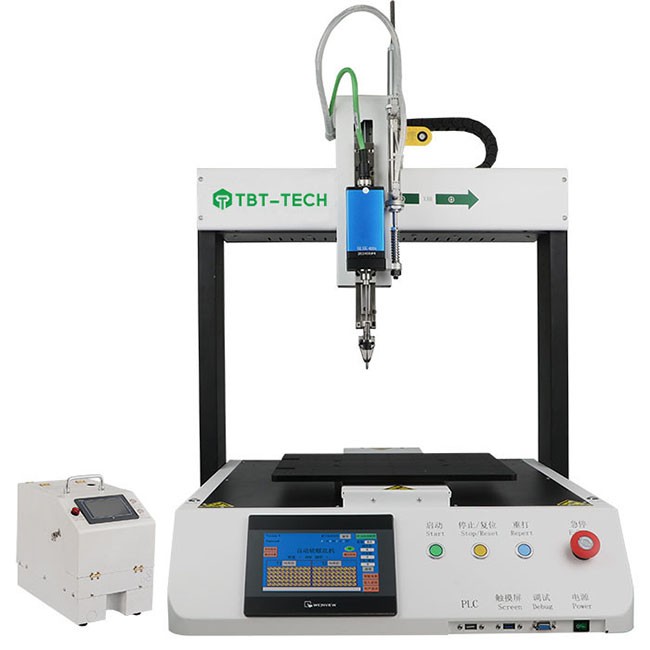

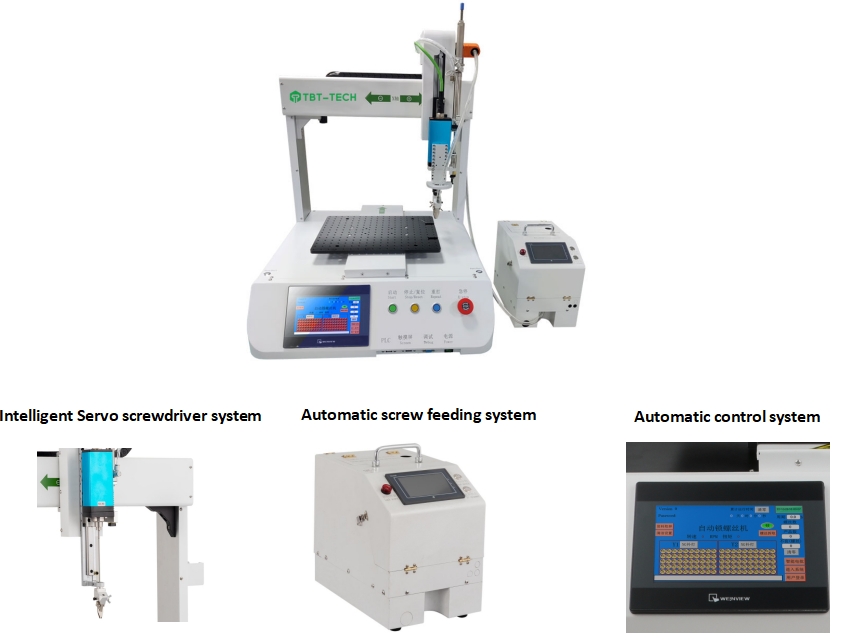

This machine includes 3 parts: The Servo screwdriver, the automatic screw feeder, and the motion control system.
It puts the automatic screw feeder together with the servo screwdriver in order to achieve the complement of screw transmission and fastening, which can greatly improve production efficiency and save manpower. Once the screwdriver is lifted after tightening a screw, another screw will be sent continuously to continue the operation, which is particularly suitable for the workpiece of multi-station with the same specification.
SPECIFICATION
Models
TBT331-SC
TBT441-SC
Size: LxWxH
620×670×720mm
720×770×720mm
Movement Range: X*Y*Z
300*300*100mm
400*400*100mm
Fastening Range: X*Y*Z
300*300*100mm
400*400*100 mm
Weight
55kg
75 kg
Drive mode
Closed-loop stepper or servo
Closed-loop stepper or servo
Transmission mode
Screw rod or synchronous belt
Screw rod or synchronous belt
Control system
PLC / Motion control card
PLC / Motion control card
Screw feeding mode
Air Shooting
Air Shooting
Screwdriver
Servo Screwdriver
Servo Screwdriver
Positioning accuracy
±0.02
±0.02
Fastening time
0.8 - 1s / screw
0.8 - 1s / screw
Program stores
999 Groups, 100 Points / Program
999 Groups, 100 Points / Program
Display method
Touch Screen
Touch Screen
Supply voltage
Single-phase 220V / 110V
Single-phase 220V / 110V
Power
900W
900W
Air supply (Mpa)
0.5-0.7 Mpa
0.5-0.7 Mpa
Screwdriver Qty (Set)
1
1
Development history of automatic screwing machines
On the road of development, we have been working hard all the time,
constantly improving our products and providing customers with high-quality products and good after-sales service.

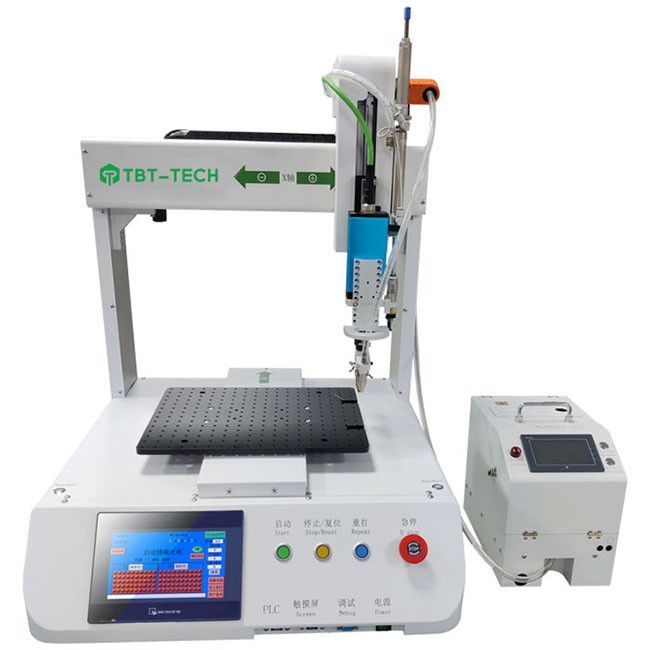

Equipment details display
Equipment Features
1. Air shooting screw feeding mode eliminates the need to take products back and forth, featuring high speed and efficiency.
2. It can fasten screws on surfaces with different heights.
3. The intelligent servo electric screwdriver supports locking a product with 4 different torques.
4. It can combine two screw locking processes. (After finishing one process, it stops. Then install accessories and lock screws for another process.)
5. The intelligent servo electric screwdriver has fast rotation speed, high precision, low noise, long service life and requires no maintenance. The torque and rotation speed can be set arbitrarily on the touch screen.
6. The sheet metal frame has strong rigidity. The Z-axis structure has a large up and down stroke, supports products with different heights and has strong compatibility.
7. The closed-loop stepping motor has high precision, can perform position compensation and does not lose steps.
8. Equipped with a self-developed motion control card, it has foolproof programming. Optional drag-type adjustment is available, making programming easy.
9. Matched with the Weinview human-machine interface touch screen, it dynamically displays the locking status, electric screwdriver rotation speed and electric screwdriver torque, enabling real-time monitoring.
10. Single-platform pneumatic type has a large fastening range.
Applicable various screw shapes

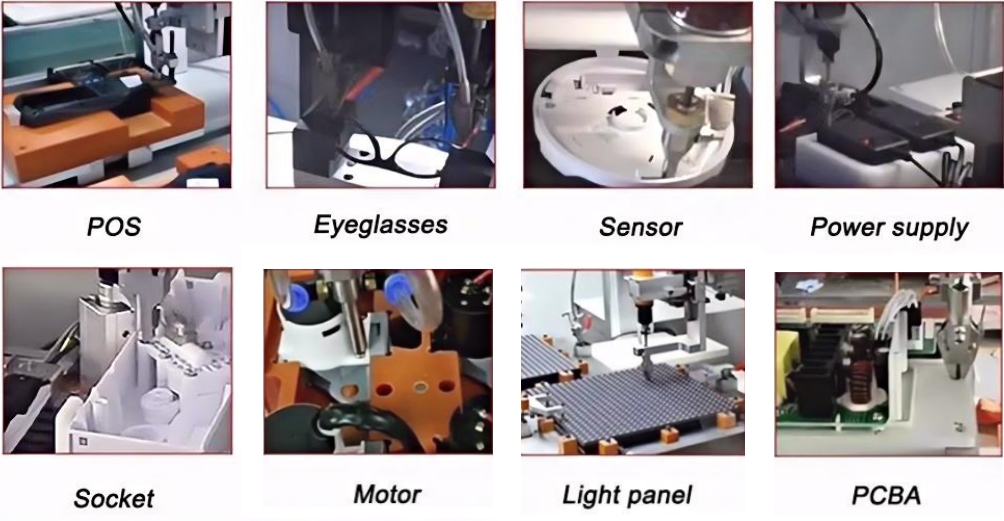

Application Cases
Automatic screw locking machines are widely used for Electronics, Home applications, LED bulbs, Auto parts, PCB assembly, Hardware, Computer board, toys, Furniture, etc...
Honor Certificates

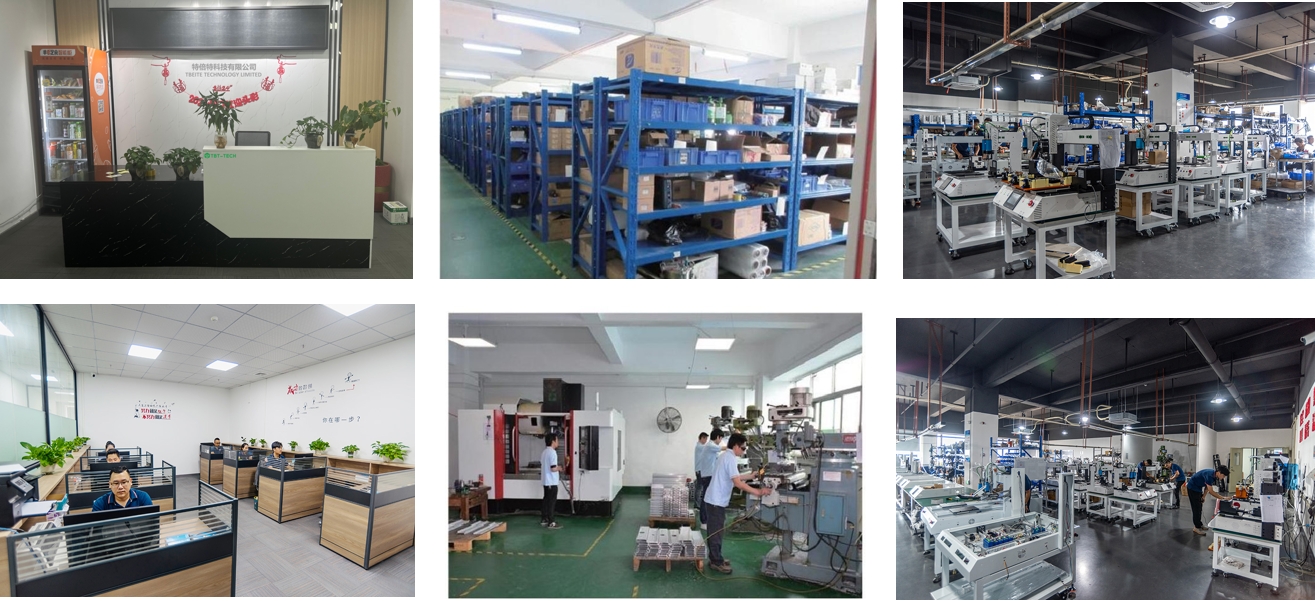

Company introduction and scene
TBT-TECH, with a decade of industry experience in automatic screw locking machines, is dedicated to customizing equipment and providing diverse solutions tailored to customer needs across various production sectors. The company boasts a production workshop and R&D center exceeding 3,000 square meters, equipped with the capability for designing and developing automatic screw locking solutions. With a professional R&D team and manufacturing base, TBT-TECH can independently research and produce core components. Its product range includes handheld devices, multi-axis systems, coordinate mechanisms, intelligent solutions, and high-precision servo locking technologies. The service scope extends widely across industries such as home appliances and furniture, IT communications, textiles and apparel, light industry, building materials decoration, mechanical equipment manufacturing, medical devices, automotive sector among others—facilitating automated production for enterprises. Upholding the business philosophy of 'integrity and focus,' the company offers comprehensive round-the-clock support along with fast-response high-quality after-sales services that have earned deep trust and acclaim from customers. We are committed to establishing TBT-TECH as a leading brand within the automatic screw locking industry.
