Description
Product Description

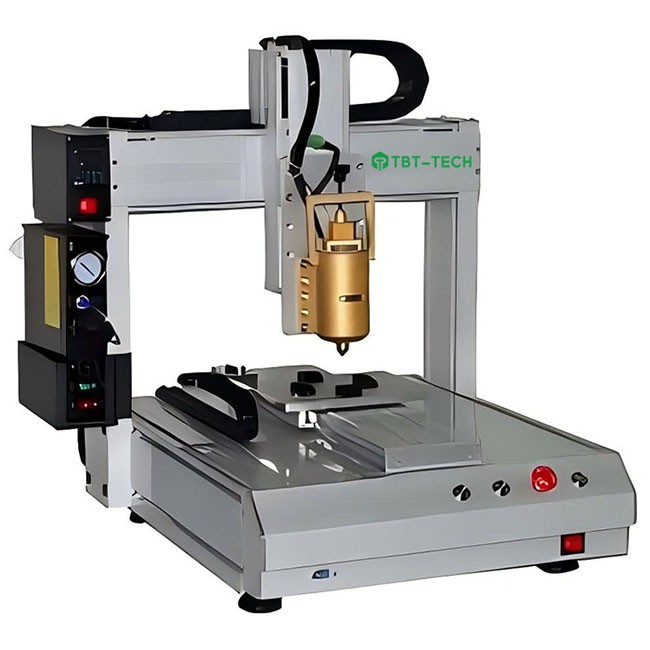

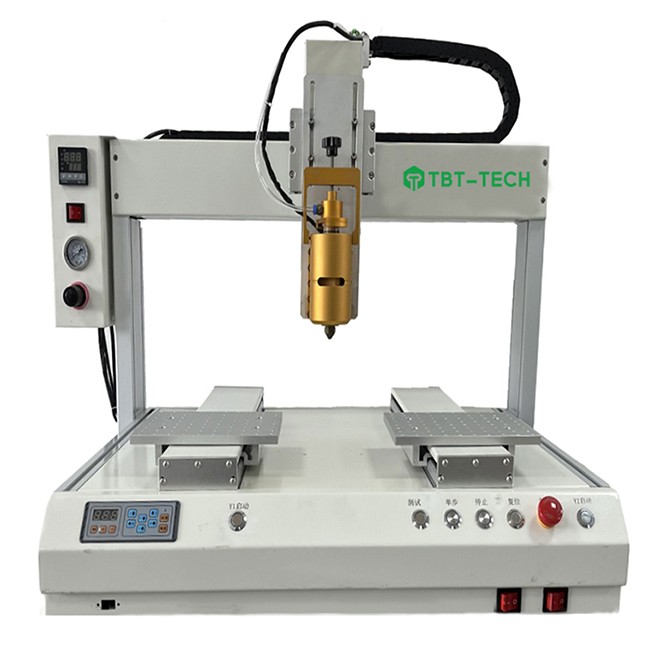

The automatic dispensing machine is a highly efficient and precision instrument designed for various industrial applications. It can accurately apply adhesives, sealants, and other fluids with consistent volume and speed.
Equipped with advanced technology, it offers stable and reliable performance. The machine is capable of handling different types of materials and viscosities, ensuring optimal results every time.
With its automated operation, it saves time and labor costs while improving production efficiency. It can be easily programmed to meet specific dispensing requirements, making it a versatile tool for manufacturers.
The automatic dispensing machine is built with quality materials and components, ensuring durability and long service life. It is user-friendly and easy to maintain, providing a convenient solution for industrial production.
Specification
Model
TBT5331-HM
TBT6441-HM
Maching Size
L824*W613*H661mm
L924*W713*H661mm
Working Range
X:500mm, Y:300mm*2, Z:100mm
X:600mm, Y:400mm*2, Z:100mm
Maximum Moving Speed
X,Y 600-800mm/s,Z 400mm/s
X,Y 600-800mm/s,Z 400mm/s
Repeated accuracy
士0.02mm
士0.02mm
Working Valtage
AC220V/110V 50-60Hz
AC220V/110V 50-60Hz
Working Air Pressure
0.4 to 0.8 Mpa
0.4 to 0.8 Mpa
Drive Method
Motor + synchronous belt + linear guide
Motor + synchronous belt + linear guide
Files Storage
Around 1000 files
Around 1000 files
Programming Mode
Teach Pendant
Teach Pendant
Dispensing Path
Dot/Line/Arc/Circle
Dot/Line/Arc/Circle
Working environment
-5~40℃,humidity 20%~95%
-5~40℃,humidity 20%~95%

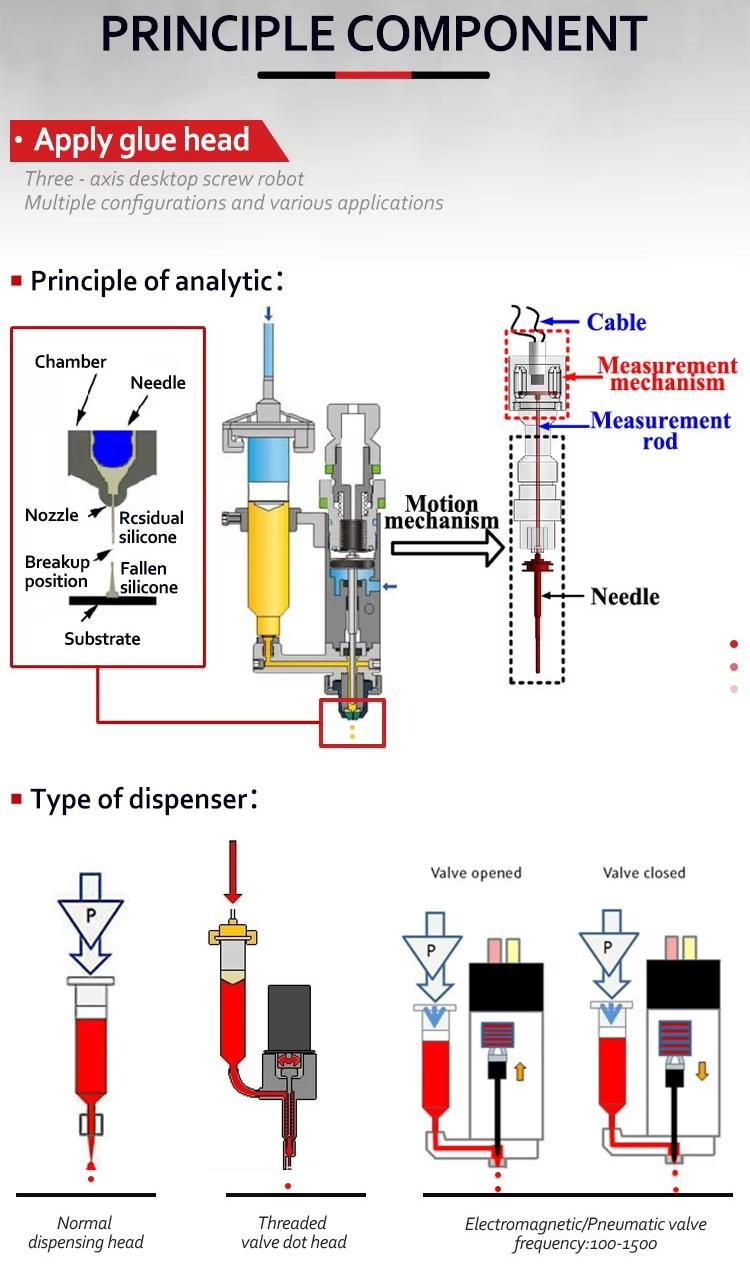

Dispensing principle
Applied Fluid
Wide Range of Applicable Fluids: It is applicable to a variety of fluid dispensing, such as UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative, etc., demonstrating its versatility in different industrial applications.

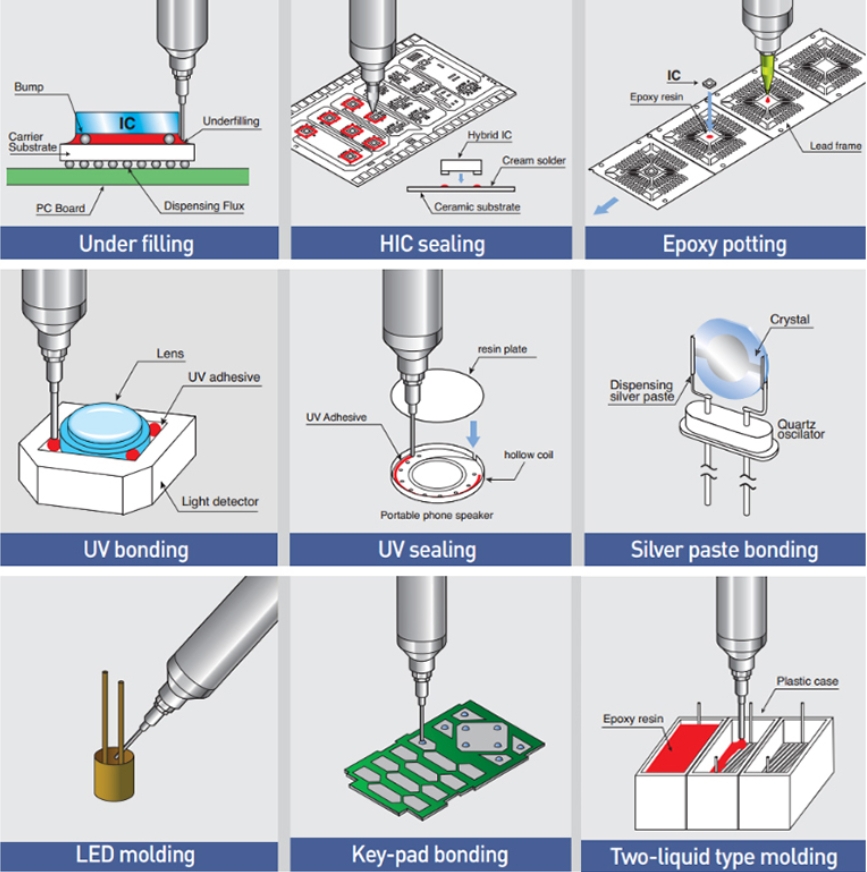

Application fields
Electronic Industry
1. PCB Manufacturing: Apply solder paste for precise soldering of electronic components, coat three-proof paint for protection, and dispense encapsulation glue.
2. Electronic Component Assembly: Used in mobile phone keypad, battery encapsulation, audio device assembly, and fixation and encapsulation of electronic components like capacitors and ICs.
3. Optical Device Processing: For bonding, fixing, and encapsulating optical elements in products such as optical lenses and camera modules.
Automotive Industry
1. Automotive Component Production: Apply sealing glue in engine cylinder manufacturing, grease in transmission gear assembly, and bond and encapsulate brake and clutch parts.
2. Automotive Electronics and On-board Electrical Equipment: Protect electronic components in ECU, sensors, etc. from various factors.
3. Automotive Interior and Exterior Trim Installation: Bond interior trim pieces and apply sealing glue for exterior trim for firmness and sealing.
Lighting Industry
1. LED Lamp Assembly: Dispense encapsulation materials for LED chip protection, conduct thermal conductive potting for LED driver power, and bond lamp components.
2. Traditional Lighting Lamp Production: Apply sealing glue in fluorescent lamp production and for shell assembly in traditional lamps.
Product Features
1.English Panel, Easy to Operate: The English control panel is designed for user-friendly operation, ensuring that users can easily navigate and control the device.
2.Glue Dispenser Function: Capable of Drawing Various Shapes. It can draw points, lines, surfaces, arcs, circles, and irregular curve continuous complements, as well as achieve three-axis linkage. This versatility allows for precise and flexible glue dispensing, meeting different application requirements.
3.Adjustable Glue Parameters: You can set the glue size, glue speed, dispensing time, and stopping glue time. It ensures stable glue exudation without any glue leaking or dripping, providing a reliable and consistent dispensing process.
4.High-Quality Glue Dispensing via Parameter Adjustment of Screw: By adjusting the parameters of the screw, it is possible to satisfy high-quality glue dispensing, ensuring the accuracy and quality of the dispensing operation.
5.Precise Stepper Motor with Numerical Control: Equipped with a precise stepper motor that enables numerical control, offering accurate positioning and control during the dispensing process.
6.Customizable Work Platform: According to the production process, the work platform can be installed with positioning PIN, glue guns, and baseboard heating temperature controlling device, allowing for customization to meet specific production needs and improving the overall efficiency and quality of the production process.
