Description
Product Description

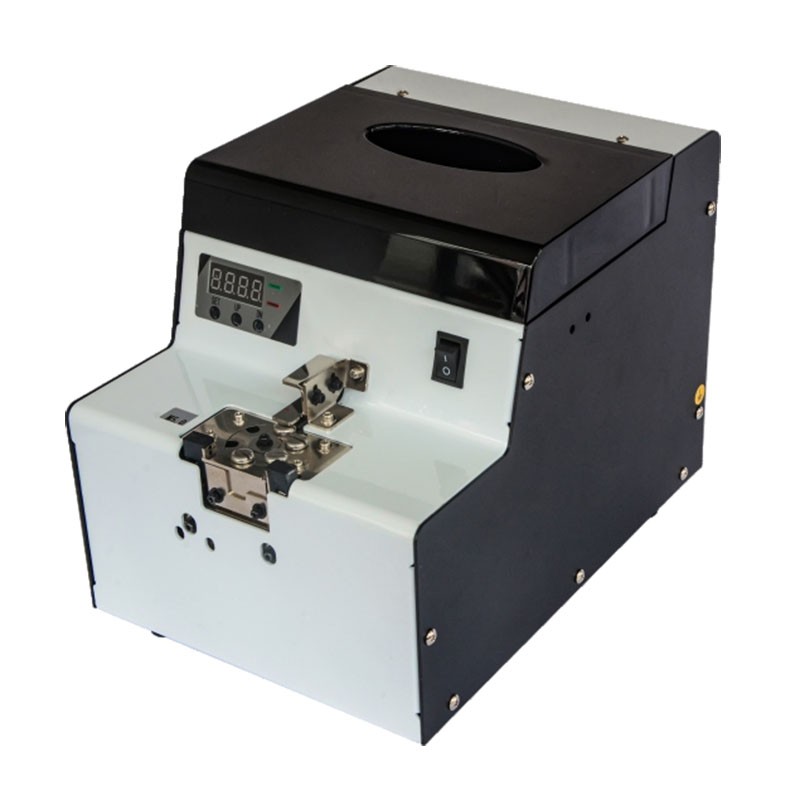

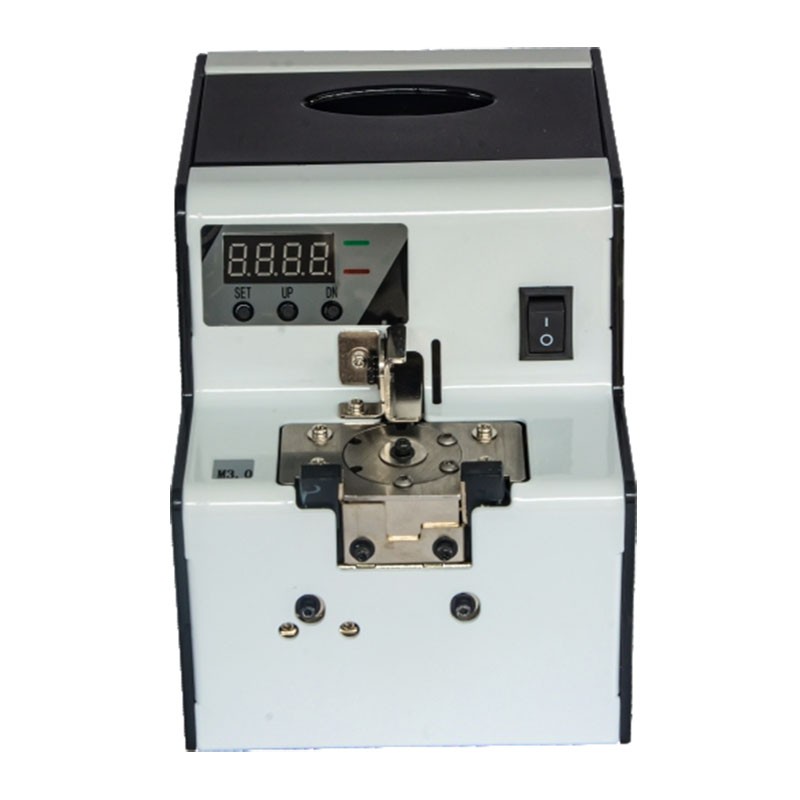

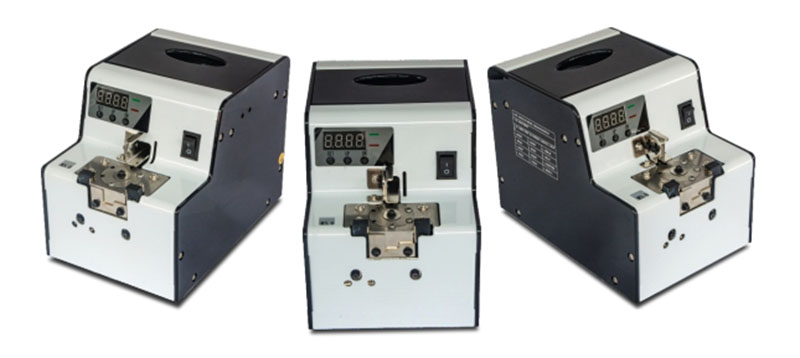

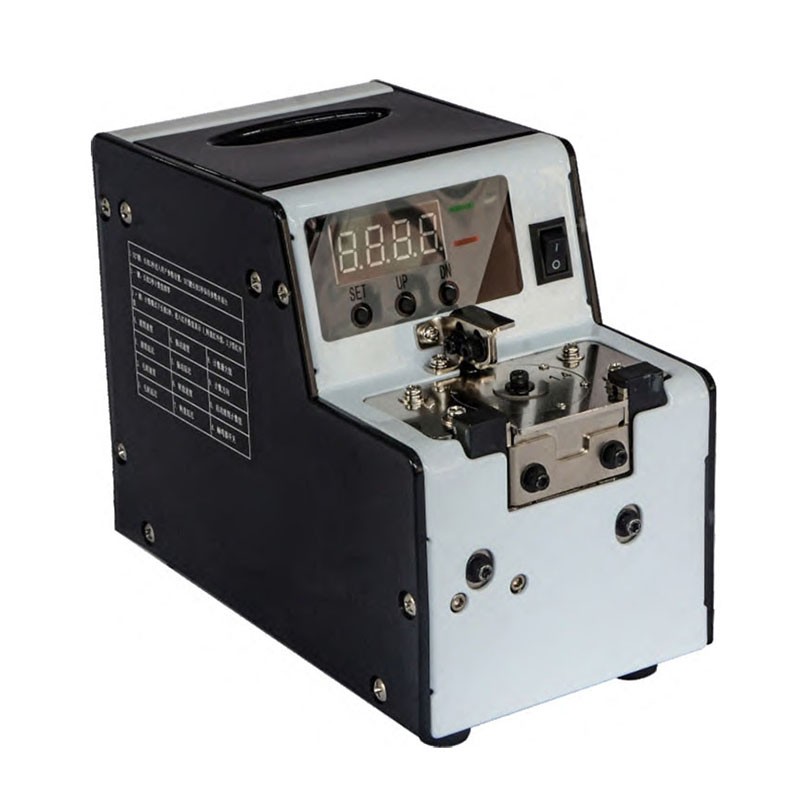

The screw feeding machine is a precise and efficient equipment. It offers continuous and stable screw supply with advanced control systems. Durable and user-friendly, it boosts productivity in manufacturing.
Specification
Model
DZ-602
DZ-682
DZ-802
Dimensions
L149*W84*H118mm
L181*W123*H142mm
L250*W180*H203mm
Weight
Around 1.3 kg
Around 2.1 kg
Around 4.5 kg
Power supply
AC100V~240V DC12V 1A AC Adapter
AC100V~240V DC12V 1A AC Adapter
AC100V~240V DC12V 1A AC Adapter
Driver motor
Maintenance-free, high-quality aircraft-grade brushless motor
Maintenance-free, high-quality aircraft-grade brushless motor
Maintenance-free, high-quality aircraft-grade brushless motor
Process beat time
Adjustable 0.4~0.9 seconds / Screw
Adjustable 0.4~0.9 seconds / Screw
Adjustable 0.4~0.9 seconds / Screw
Applicable screw diameter
M0.8~M2.0
M1.0~M5.0
M2.0~M6.0
Applicable screw length
1.0~12mm
1.0~20mm
1.0~30mm
Screw capacity
Around 800cc
Around 1000cc
Around 1500cc
Applicable screw
Product Features
1. Utilizing imported brushless motors and an anti-interference intelligent control system, with multiple signal transmission interfaces.
2. The appearance is high-end, stylish, and of top grade, suitable for automatic screw locking machines on platforms and various types of manipulators.
3. The visual digital display functional operation panel features shortcut setting buttons for each parameter, enabling direct parameter configuration.
4. It can be used in combination with automation (manual or automatic), and can handle special screws, 1:1 short screws, and screws with washers. The product is compact and can be placed on the workbench, reducing the labor intensity of employees, improving work efficiency, and saving costs.
5. Main application fields: 3C products, household appliances, automotive parts, and toys.
