Description

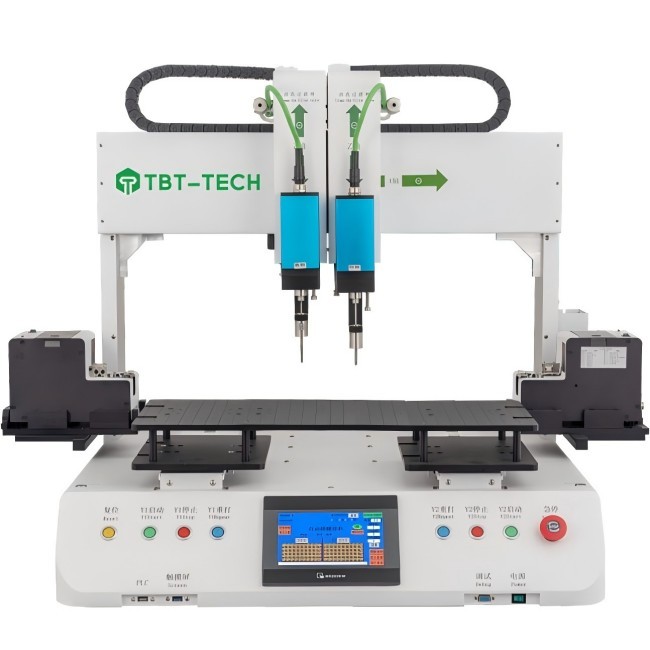

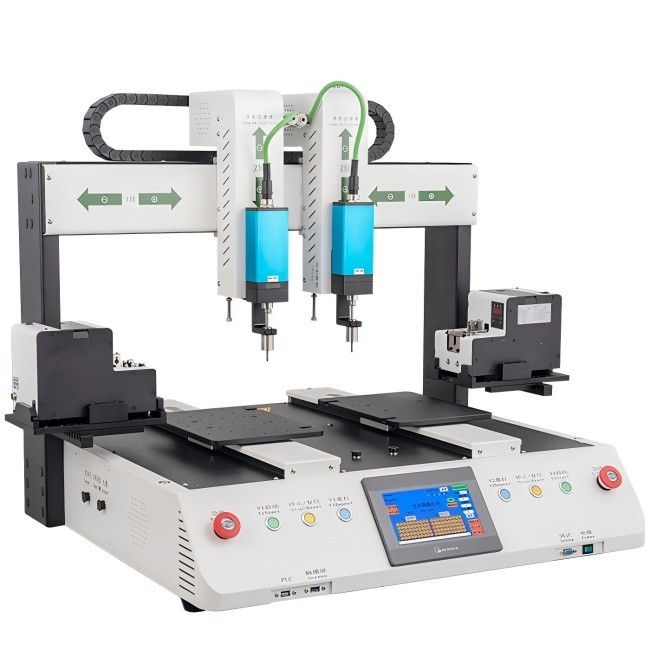

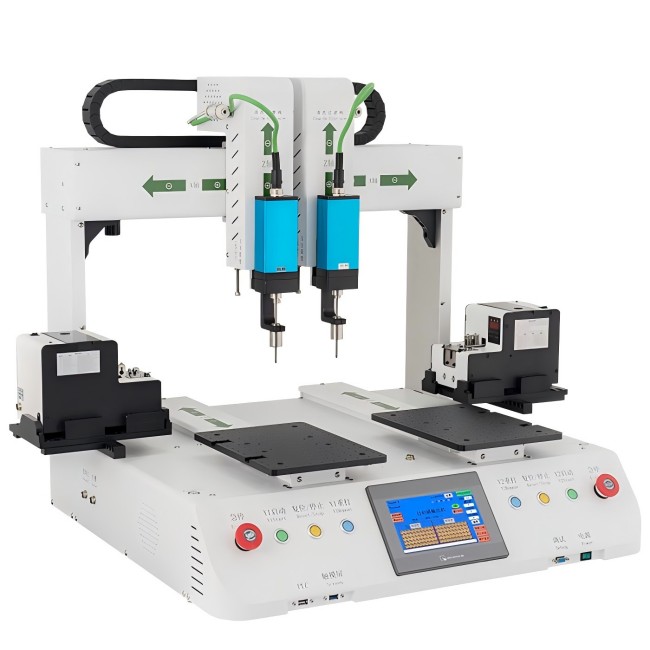

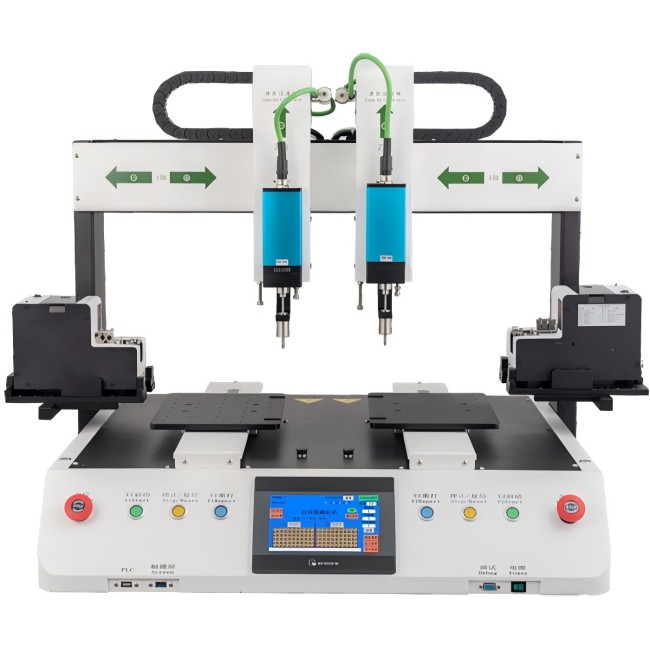

Equipment features for the dual-head and dual-station screwing machine
1. Simple replacement of molds and accessories can be used for other products universally.
2. It adopts a double-guide rail structure, which is wear-resistant and has a long service life.
3. Equipped with a standard servo electric screwdriver, it has a longer service life, and torque adjustment and speed are more convenient and flexible.
4. It has intelligent detection functions and can detect missed locking, incorrect locking, and stripped threads.
5. It has strong versatility and flexible operation and is suitable for screw locking of multiple products.
6. The equipment is small in size and can be conveniently placed in the production line. It is equipped with a front-load and back-take function as standard.
7. Drag-and-teach makes machine adjustment and line change more convenient and fast.
8. With left and right dual stations, dual electric screwdrivers, and dual feeding machines, the locking efficiency is high.
Equipment Introduction

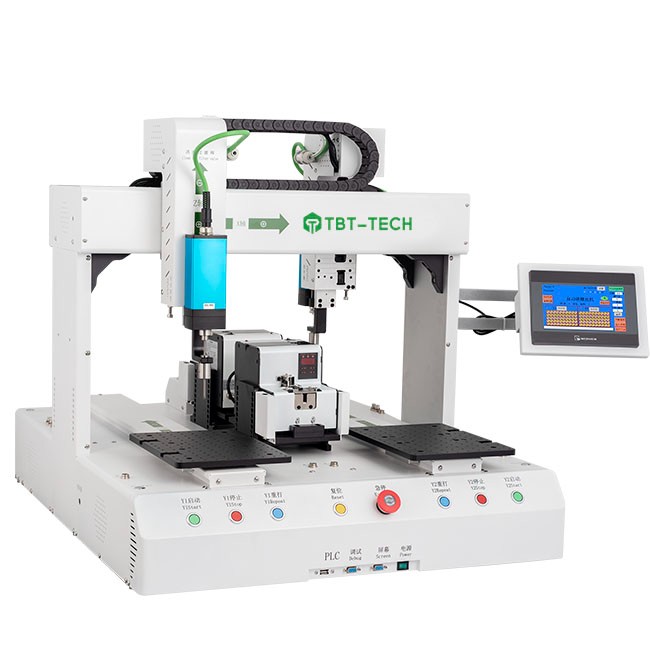

The dual heads screw tightening machine is a remarkable equipment. As the name suggests, it is designed to handle screws with two screwdrivers. The dual-heads feature offers unique advantages. It enables more efficient fastening as two heads can be engaged simultaneously in different applications. This allows for quicker assembly processes and increased productivity. The machine is engineered with precision to ensure accurate placement and driving of the dual-heads screws. Whether in manufacturing, construction, or other industries, the dual-heads screw fastening machine stands out for its ability to handle these specialized screws with ease and efficiency.

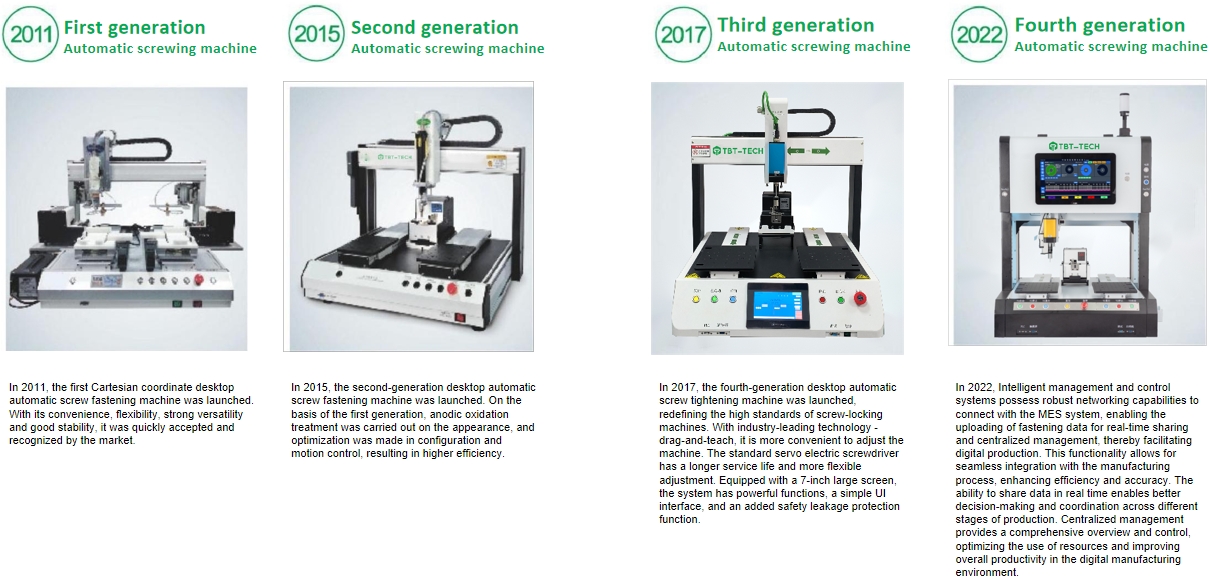

Development history of automatic screwing machines
On the road of development, we have been working hard all the time,
constantly improving our products and providing customers with high-quality products and good after-sales service.
Specification
Models
TBT241-SX2
Size: LxWxH
730×780×720mm
Movement Range: X*Y*Z
200*400*100mm
Fastening Range: X*Y*Z
180*400*100mm
Weight
100kg
Drive mode
Closed-loop stepper or servo
Transmission mode
Screw rod or synchronous belt
Control system
PLC / Motion control card
Screw feeding mode
Air Suction / Magnet Suction/Air Shooting
Screwdriver
Servo Screwdriver
Positioning accuracy
±0.02
Fastening time
0.8 - 1s / screw
Program stores
999 Groups, 100 Points / Program
Display method
Touch Screen
Supply voltage
Single-phase 220V / 110V
Power
1000W
Air supply (Mpa)
0.5-0.7 Mpa
Screwdriver Qty (Set)
2

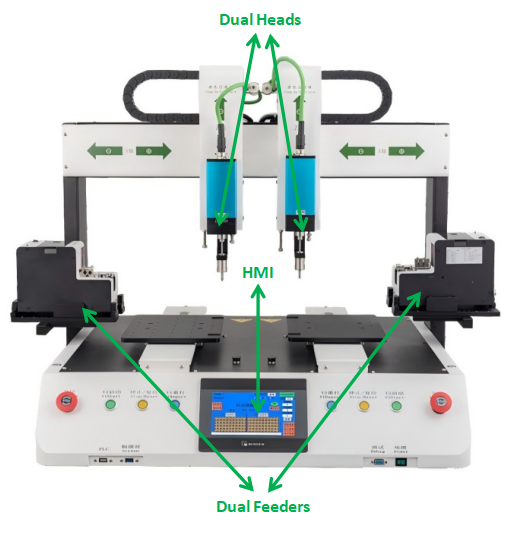

Product Functions and Highlights Analysis
1: The dual-heads and dual-feeders is capable of being fastened with 2 different products and screws, providing enhanced flexibility and versatility in the tightening process.
2: The dual-heads screwing machine can operate simultaneously at a dual-heads dual-rails, resulting in a doubling of efficiency and being 1.5 times that of the four-axis screwing machine, significantly improving production output.
2: The screw feeding mode can support both vacuum suction and magnetic suction modes, allowing for a wider range of options to suit different application scenarios and material characteristics.
3: The intelligent screwdriver allows for the torque, speed, angle, and other fastening parameters to be arbitrarily set according to the product, ensuring precise and customized tightening operations for various items.
4: HMI displays the fastening state in real time, and the four torsion forces can be switched arbitrarily to meet higher screw fastening requirements, providing operators with clear and immediate information and enhanced control capabilities.
5: Equipped with a self-developed motion control card, it features fool programming and optional drag adjustment, making programming easy and accessible, even for those with less technical expertise. This simplifies the operation and setup process, improving overall efficiency and user experience.
Application Cases
Automatic screw locking machines are widely used for Electronics, Home applications, LED bulbs, Auto parts, PCB assembly, Hardware, Computer board, toys, Furniture, etc...
Honor Certificates

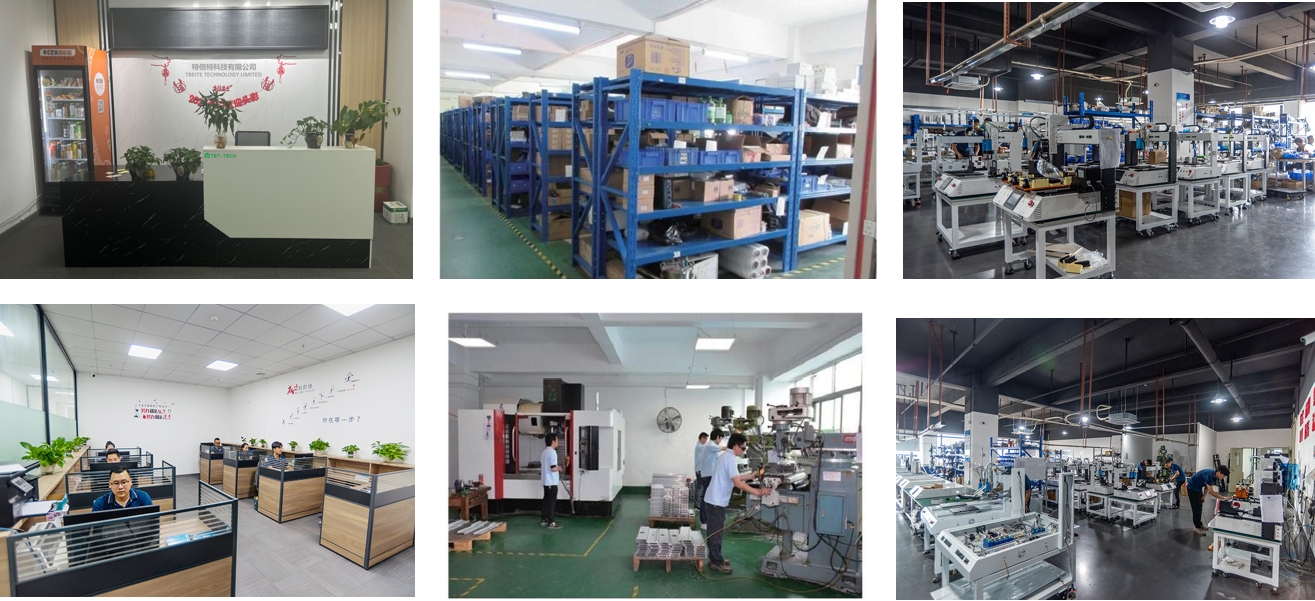

Factory strength
We are committed to providing customers with comprehensive solutions for automatic screwdrivers, automatic screw feeders, fluid dispensers, automatic riveters and other related automatic equipment. Mass production of our machines offers advantages in price and fast delivery. Before shipping, the machines are fully tested and carefully packaged to ensure the quality and stability of the delivered products.
